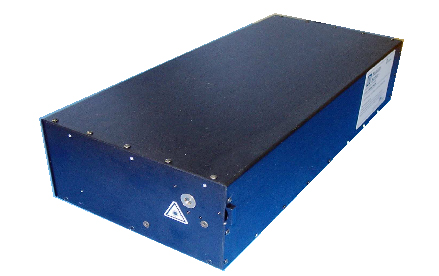

Nano-2 Laser Model

The Nano-2 Laser Model is an affordable, rugged, turnkey, compact, all solid-state, pulsed, nanosecond UV laser. Designed specifically as an ionization source for MALDI-mass spectrometry, this stable reliable, efficient, passive Q-switched, diode-pumped, frequency-tripled or quadrupled Nd:YAG source can directly replace high-maintenance nitrogen and other lasers in a broad range of research and industrial applications.

The Nano-2 Laser Model is available in two versions:
• 250/200 µJ/Pulse @ 200/100 Hz max; or
• 50/35 µJ/Pulse @ 1 kHz;
with either collimated or fiber coupled output.

Features

• Better than 4% pulse to pulse energy stability;
• Products with Class 1 requirements;
• Simple external computer control over the repetition;
• Fiber delivery allows this Class 3B laser to be easily integrated into OEM;
• Rate and output energy via the built-in RS232 port;
• Optional direct collimated or focussed fiber termination outputs available

Applications

• MALDI Mass Spectrometry
• Laser fluorescence and imaging
• Raman spectrometry
• Flow measurements
• Engraving, marking, trimming, surface cleaning
• Short-range remote sensing, inspection
• Medicine

Content and Delivery

The delivered laser consists of the following
The turnkey package includes the following:
• Integrated Laser Head, Driver, and Power Supply Unit;
• 2m Output Fiber;
• Power Cable;
• Test Record.
• Direct collimated or focussed fiber outputs are available as options

Warranty

1 year for all parts and labor excluding the laser pump diode. The pump diode is warranted for the lesser of 1 year or 10 nano pulses.
