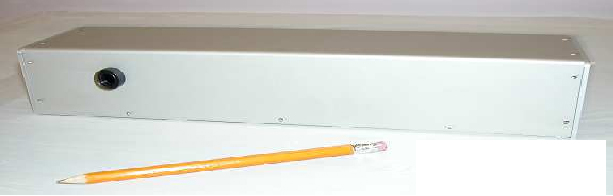

Nano-2C Laser Model

The Nano-2C Laser Model is the Q-switched, diode-pumped Nd:YAG laser with output at 532
nm and 355 nm. The extremely compact design makes that laser suitable for use in many
applications listed below. The laser can be installed on any moving vehicle or carried in hands.

Features

• Compact, self-contained laser
• Several ns and shorter pulse width
• Close to the TEM 00 beam quality
• Energy attenuation
• Repetition rate up to 400 Hz (750 Hz optional)
• OEM and turnkey versions are available
• External computer control of repetition rate and output energy via the built-in USB port

Applications

• MALDI Mass Spectrometry
• Sensing and ranging
• Micromachining, marking,Stereo-lithography
• Raman scattering including SERS,CARS
• Laser Induced breakdown spectroscopy and fluorescence
• Laser ablation, destruction, photo-ionization
• Basic research, medicine

Content and Delivery

The delivered laser consists of the following
The turnkey package includes the following:
• Turnkey Laser or its OEM version
• Power Cable
• Test Record.
• CD with Control Application (upon request)

That laser can be also delivered in OEM version (with separate laser driver and controller)

Warranty

1 year for all parts and labor excluding the laser pump diode. The pump diode is warranted for the lesser of 1 year or 10 nano pulses.
