Pico-1 Laser Model

The Pico-1 Laser Model belongs to family of picosecond lasers operating at wavelengths 1064 nm, 532 nm, 355 nm, 266 nm, 213 nm. This is affordable (relatively low cost) rugged model producing high peak power picosecond output. The short pulse length and the high peak power make the Pico-1 Laser Models a very suitable tool for micromachining, remote sensing and other applications.

Features

• Highest peak power in UV band
• Shorter output width (8 ps at 1064 nm)
• TEM 00 beam quality
• Air cooling

Applications

• Micromachining, including AMOLED and LCD displays processing
• Fast laser ablation, fragmentation and destruction, photolithography
• Remote sensing
• Medical application
• Photo lionization, LIBS
• Single and double photon Laser Induced Fluorescence (LIF)
• Time resolved spectroscopy, Raman spectroscopy

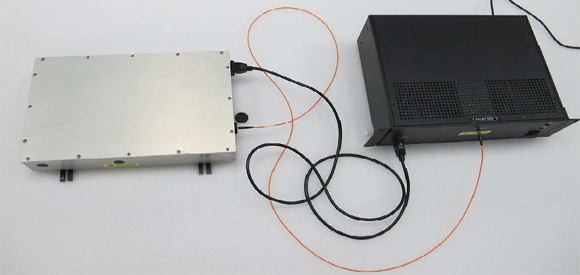

Content and Delivery

The delivered laser consists of the following
The turnkey package includes the following:
• Laser Head
• 2-m fiber for pumping delivery
• Power Module
• CD with Manual and Control Application
• Power Cable
• Test Record

Warranty

1 year for all parts and labor excluding the laser pump diode. The pump diode is warranted for the lesser of 1 year or 10/9 pulses.
