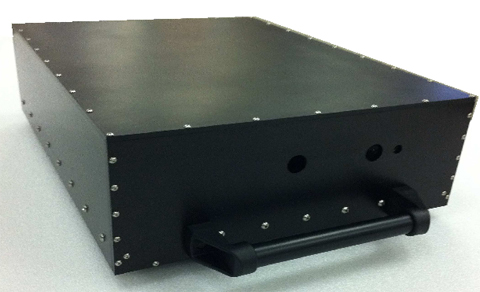

Pico-2 Laser Model

The Pico-2 Laser Model belongs to a family of picosecond laser operating at wavelengths 1064 nm, 532 nm, 355 nm, 266 nm, 213 nm. This is affordable (relatively low cost) rugged model, producing high peak power picosecond output. The short pulse length and the high peak power make the Pico-2 Laser Model a very suitable tool for micromachining, remote sensing and other applications. The main feature of Pico-2 Laser Model is high energy and average power in a short picosecond pulse.

Features

• TEM 00 beam quality
• Air cooling
• High pulse energy with 1kHz rep-rate

Applications

• Precise machining
• AMOLED displays and organic thin-film processing
• Solar cell manufacturing
• Transparent material modification
• Time resolved Raman and single/double photon Laser Induced Fluorescence (LIF)
• Coherent Anti-Stokes Raman Scattering and Ultra sensitive detection
• Photo-mask repair and ablation lithography
• Photo dissociation and ionization of complex molecules , picoLIBS
• Ultrahigh density 3D storage technology
• Thin-film deposition
• Optical switches
• High accuracy global/local positioning system

Content and Delivery

The delivered laser consists of the following

• Laser head
• Power module
• Optical fibers for pumping delivery
• CD with Manual and Control Application;
• Test Record.

Warranty

1 year for all parts and labor excluding the laser pump diode. The pump diode is warranted for the lesser of 1 year or 10/9 pulses.
